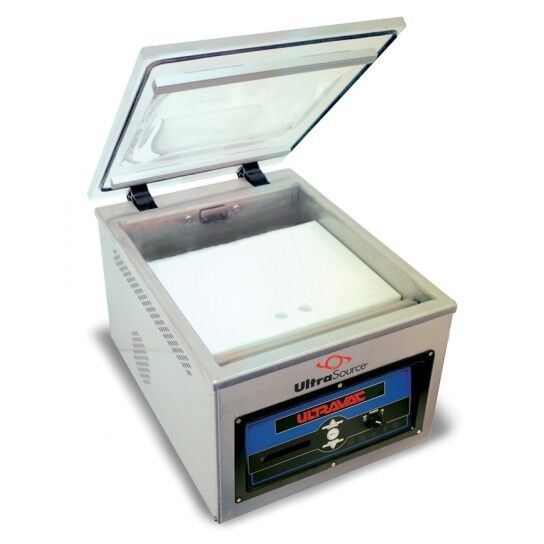

Ultravac® 250 Table Top Vacuum

Product Description

Ultravac® 250 Table Top Vacuum

The best value in tabletop commercial vacuum packaging today! Ideal for small processors, restaurants, supermarkets, and even labs.

Standard Features:

• 20 gauge stainless steel construction
• Patented lid hinge system minimizes stress on lid to eliminate
  cracking for longer life
• Heavy duty transformer (200VA)
• High density polyethylene filler boards
• Electrical connection 110/230 volt, single phase
• Heavy duty, transparent molded acrylic lid
• NEMA 4 moisture resistant wash down electronic controls designed to safeguard against cold temperatures and high humidity
• Digital programmable control panel controls all machine functions. Saves up to ten programs
• Single seam sealing with cut off
• Quick change, 16-in. seal bar
• Pozi-Pressure® radius surface sealing element for sealing through contaminants, folds, and wrinkles for a better, more consistent seal
• Large capacity chamber: 6.75-in. deep x 16.625-in. wide x 19.875-in. long
• USDA acceptable for use in federally inspected meat and poultry plants
• Dependable American made electronic components:
• ETL Listed: Conforms to UL-73, CSA-C22.2 No. 68-92, NSF-2 CE Certified
• Backed by our full two year warranty (call for details)
• Engineered and manufactured by UltraSource in Kansas City, Missouri

Specifications:

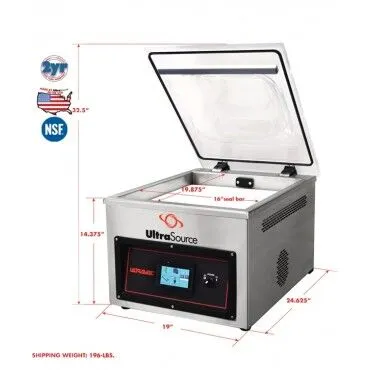

• Machine Dimensions: 19-in. long x 24.625-in. wide x 32.5-in. maximum height (476mm x 625mm x 813mm)
• Working Height: 14.375-in.
• Seal Bar Length: One 16-in. (406mm) seal bar. Seal bar has one sealing element and one cut off wire
• Chamber Dimensions:16.625-in. wide x 19.875-in. long x 6.75-in. deep (422mm x 505mm x 171mm)
• Between Seal Bar and Back of Chamber: 17.75-in.
• Between Seal Bars (double seal bar option): 16.375-in.
• Machine Speed: Actual speed varies depending on products and desired vacuum levels
• Vacuum Pump: 1.25 horsepower (0.95kw)
• Net Weight: 178-lbs.
• Electrical Requirements: 110 volt, 60 Hertz, single phase, 15 amps – 230 volt, 50/60 Hertz, single phase, 6.5 amps

Compressed Air Requirements – While a good seal can be obtained without air-assist, there are certain applications that will require the use of compressed air. Please consult with your sales representative to see if compressed air is needed for your application. *Double seam seal option requires compressed air.

Optional:

• Gas flush operation
• 4.3″ LCD Touchscreen Control Panel
• Dual 16-in. seal bars for double seam sealing

Warranty: Two year warranty on all parts except normal wear items.

*1-2 week lead time on all Ultravac® machines
